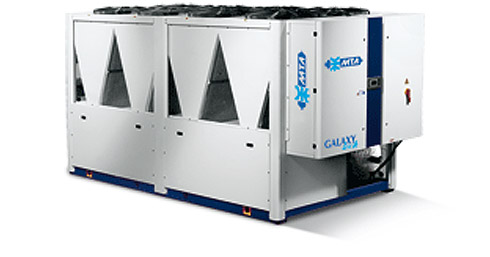

GALAXY
Air-cooled chillers.
Cooling capacity from  366 to 1079 kW.

Operation at partial loads corresponds to the largest portion of the working life of a unit dedicated to 空调 applications: typically thermal loads vary widely both during the year and throughout each 24 hour period. The subdivision of the total cooling capacity over a large number of capacity steps, rendered possible thanks to the implementation of multi-scroll technology and environmentally friendly refrigerant R407C, ensure maximised performance at partial loads, resulting in seasonal energy savings of more than 13% with respect to conventional solutions. The multi-scroll configuration offers a lightweight solution, and permits the elimination of the storage tank with the associated dispersal of cooling energy, thus further reducing the static loading on the supports. Progressive stopping of the compressors and fans means that Galaxy is extremely quiet in operation, rendering it ideal for installation in noise-sensitive surroundings.

Mode

Compressors

Refrigerant R407C

Heat Exchanger

Fans
